产品说明
- 主体材质6061-T6铝合金
- 黑色阳极氧化
LBTEK30 mm同轴板安装座，带M6孔槽和M4沉头孔槽，用于将30 mm同轴板直接固定在光学平台上或者面包板上，每个底座上都有一个凸起的边缘，来防止同轴板或安装座受力时旋转。
产品属性
主体材质6061-T6铝合金
表面处理黑色阳极氧化
安装孔M6孔槽和M4沉头孔槽

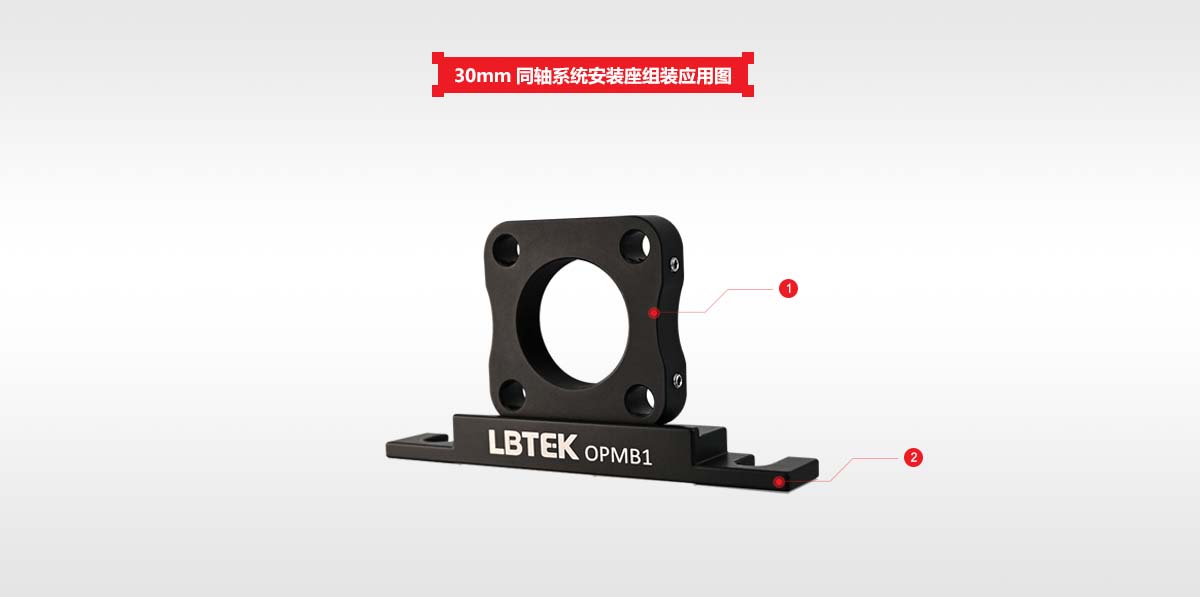

30 mm同轴系统安装座
- 主体材质6061-T6铝合金
- 黑色阳极氧化
- 2个M6孔槽，1个M4沉头孔槽

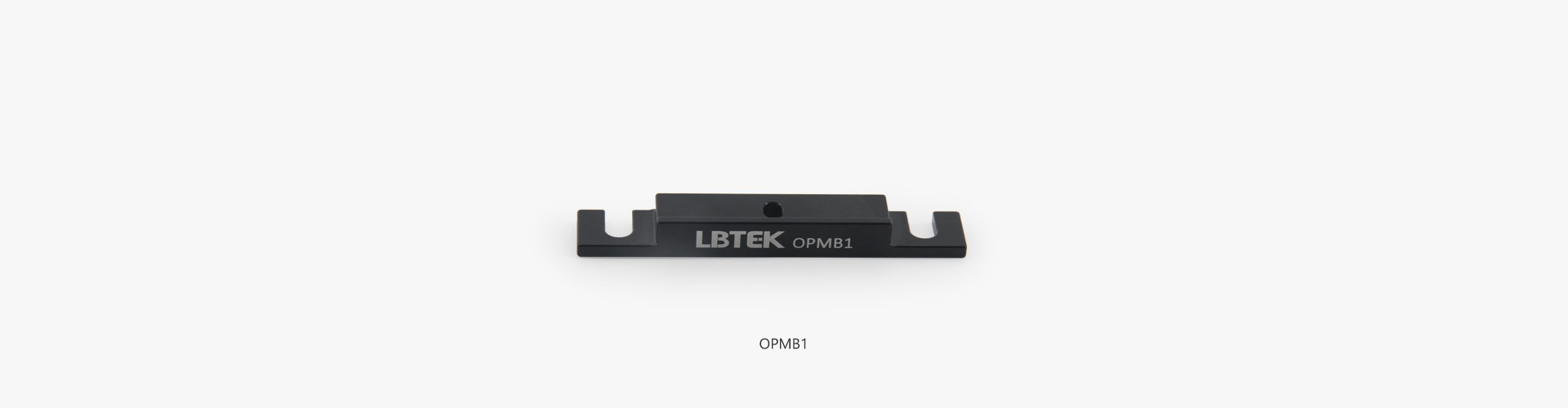

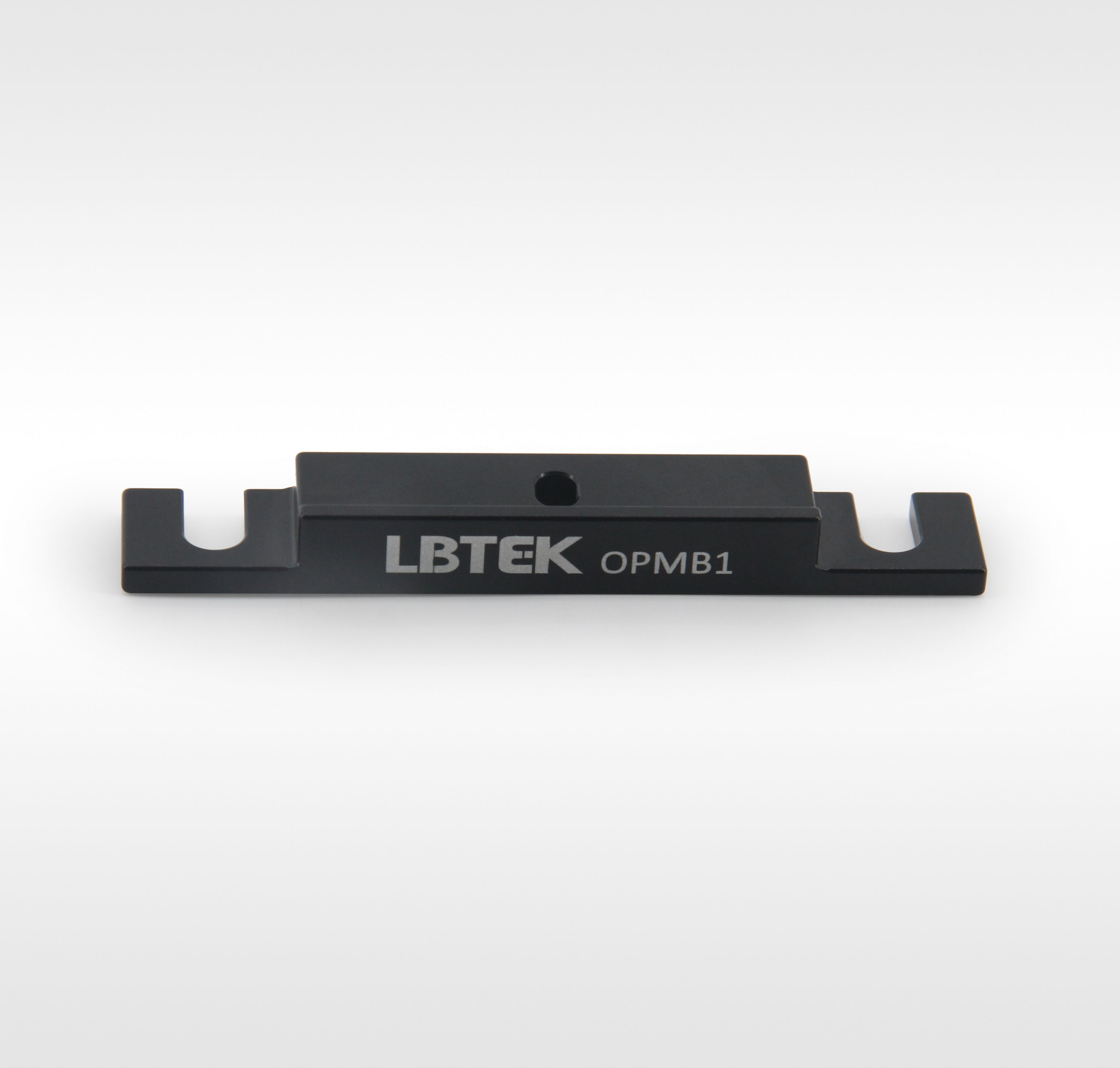

LBTEK提供的30 mm同轴板安装座，带两个M6孔槽，一个M4沉头孔槽，用于将30 mm同轴板直接固定在光学平台或面包板上。购买LBTEK OPMB1直角转接板赠送2个M6圆柱头内六角螺钉和M6垫片以及一个M4圆柱头螺钉。

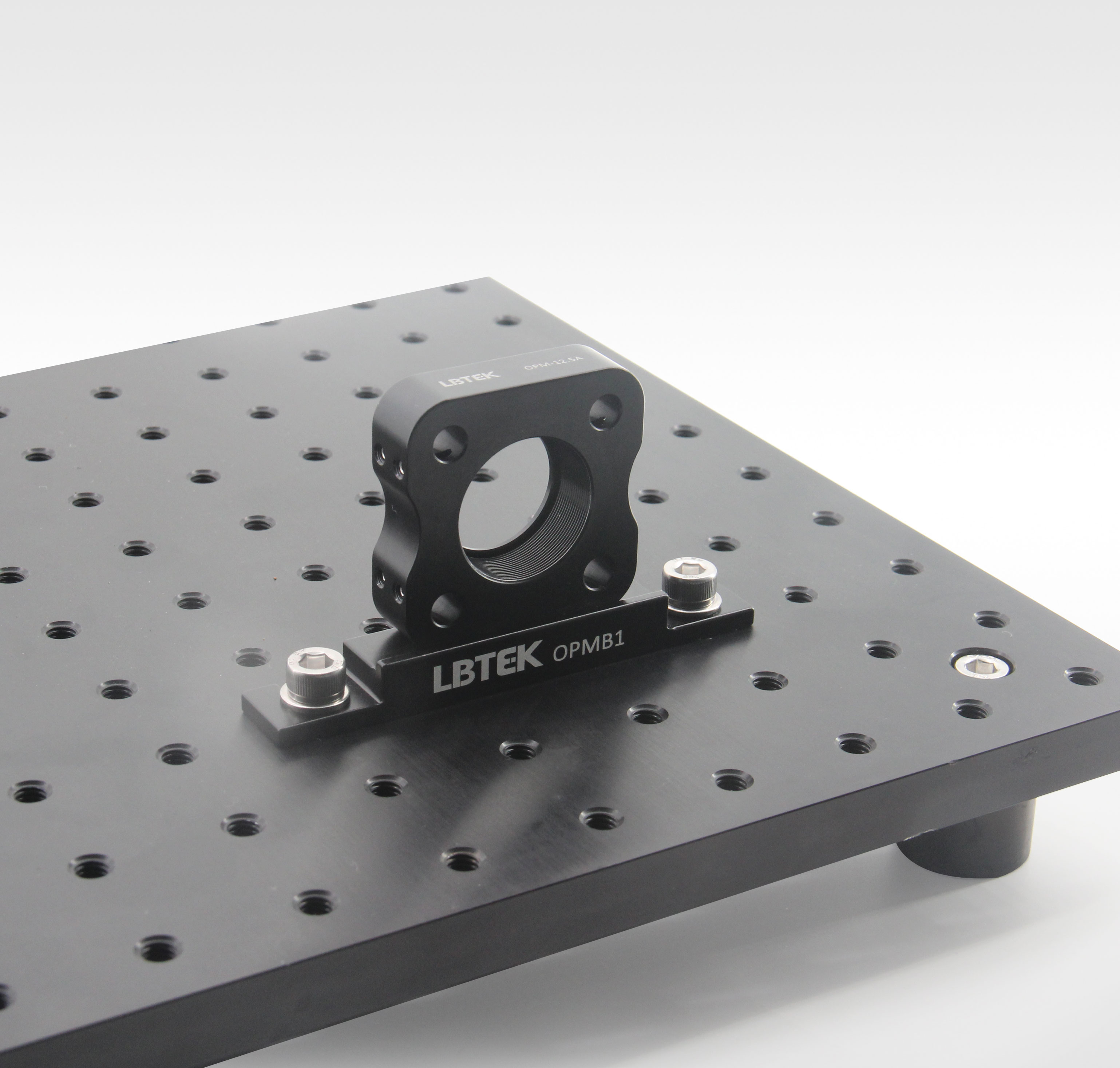

OPMB1常用于将30 mm同轴板直接固定在光学平台或面包板上
产品型号 | 安装孔 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|
 | OPMB1 | 两个M6孔槽，一个M4沉头孔槽 | ¥119.00 | 当天 | 加入购物车 |
