参数规格
反馈
产品说明
- 通道数：2
- 输出高达±210V直流电压、±3A直流电流以及±10.5A脉冲电流
LBTEK提供的源表，简称 SMU。提供触摸屏、前面板键和旋钮来施加电压/电流或测量电压/电流/电阻。仪器还支持多个功能，如扫描输出、脉冲输出、任意波形生成、限值测试、迹线缓冲区、数学表达式和图形打印。因此源表可以是 DC（恒定）电压/电流源、扫描电压/电流源、脉冲发生器、任意波形发生器和万用表。

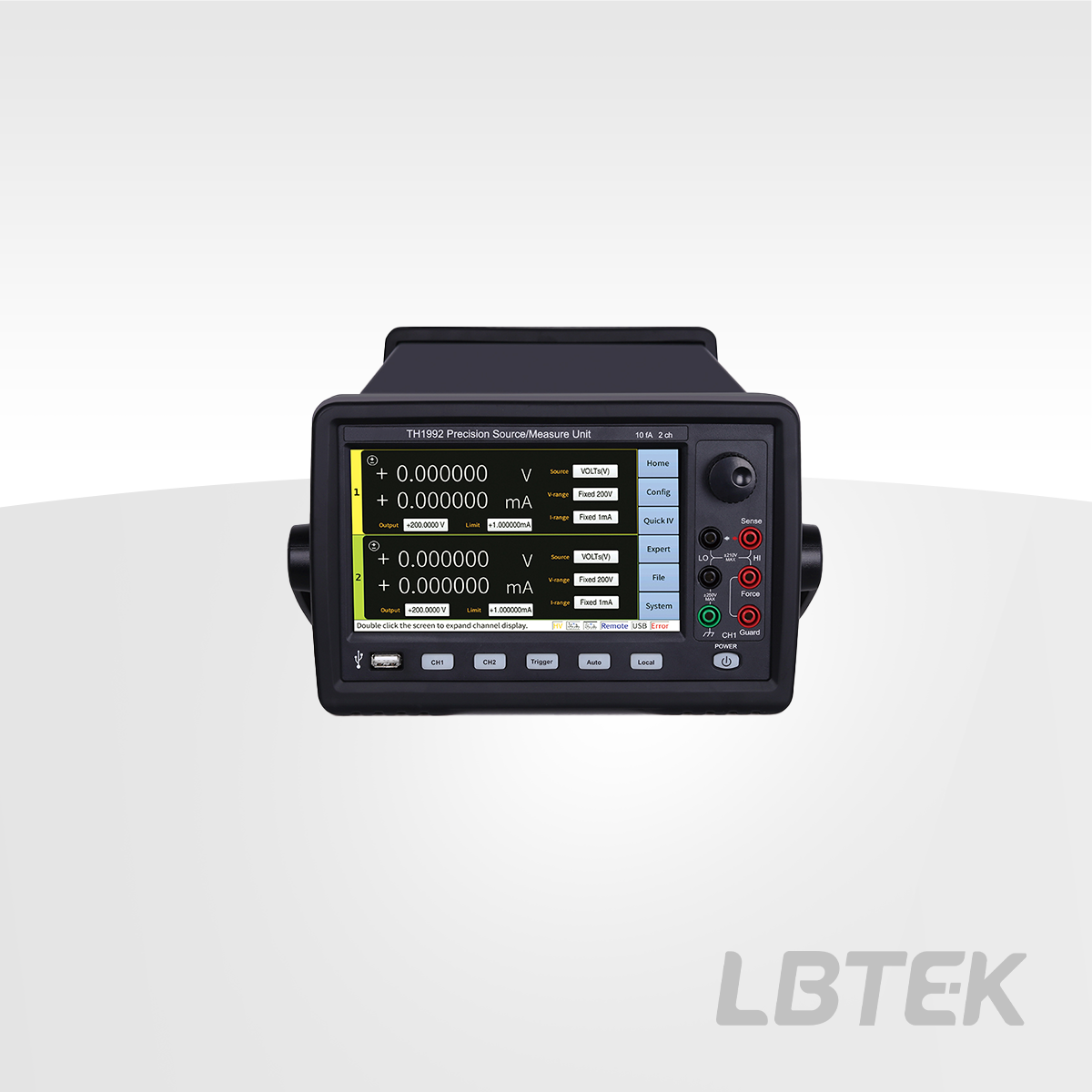

源表
- 双通道输出及测量
- 高达±210V直流电压、±3A直流电流/±10.5A脉冲
- 7英寸电容式触摸屏，分辨率800×480
LBTEK提供的源表，简称 SMU。提供触摸屏、前面板键和旋钮来施加电压/电流或测量电压/电流/电阻。仪器还支持多个功能，如扫描输出、脉冲输出、任意波形生成、限值测试、迹线缓冲区、数学表达式和图形打印。因此源表可以是 DC（恒定）电压/电流源、扫描电压/电流源、脉冲发生器、任意波形发生器和万用表。
参数表仅包含了产品测量的主要特性参数，详情参数可下载数据手册查看。

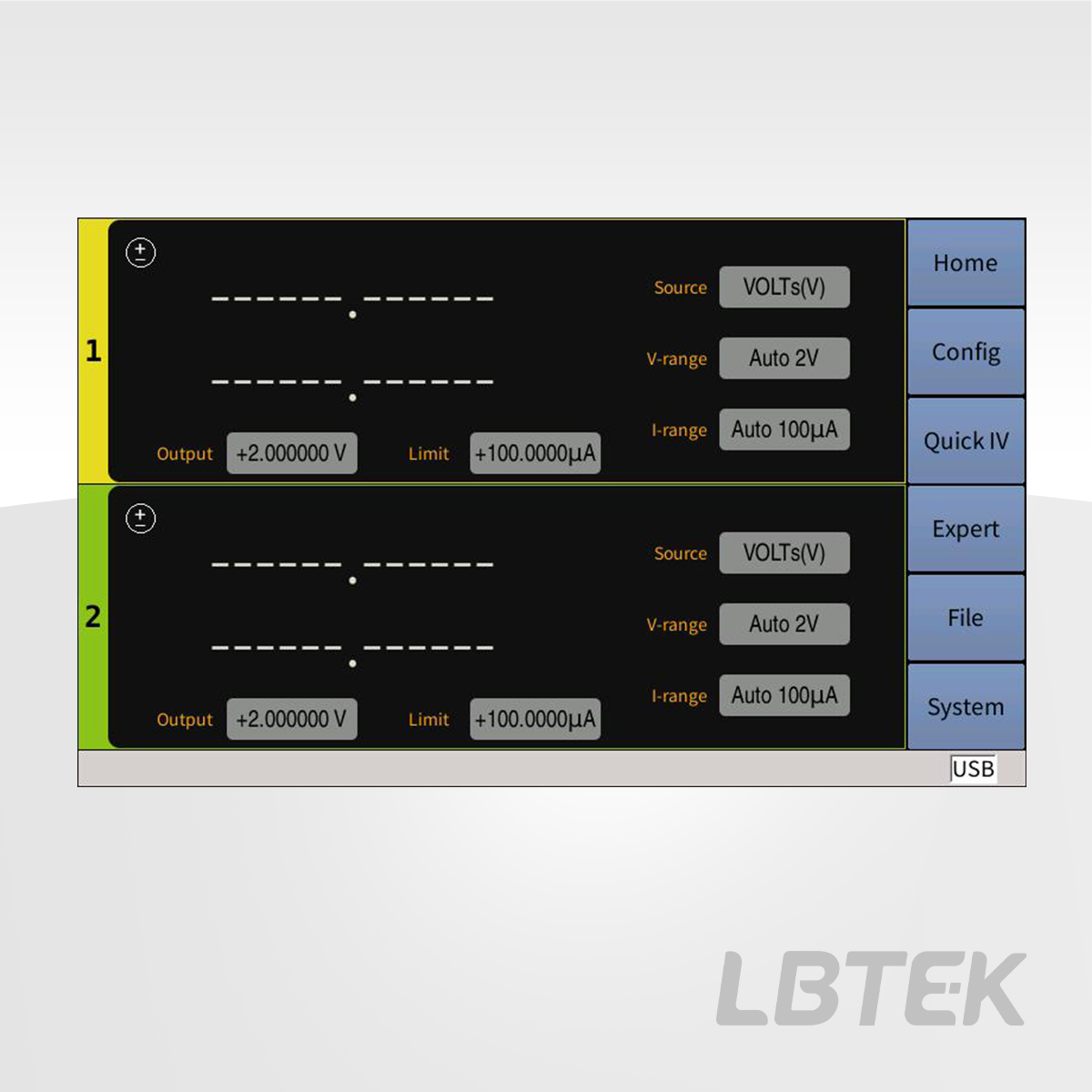

源表home界面
产品型号 | 通道数 | 最大输出电压 | 最大输出电流 | 文件 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|---|
 | TH1992 新品 | 2 | ±210 V | ±3.03 A@直流，±10.5 A@交流 | ¥80,850.00 | 5周 | 加入购物车 |
